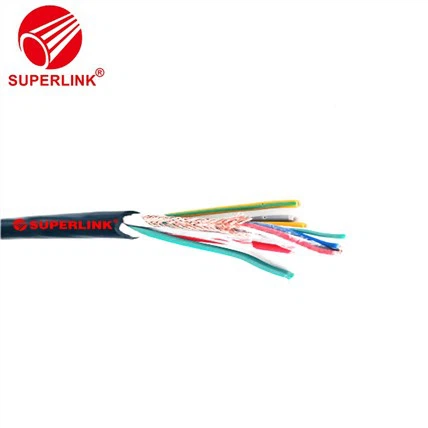

Lighting Control Cable Multi Core
Application:
Multi conductor cables are commonly used for control purposes. Things such as remote signaling, communications, and broadcast applications to name a few.
Multiple cores control cable
Features Touch Panels, Key Pads
Expansion Modules, Tuners
Indoor Applications
Power Limited Control Circuits
ETL Lisetd, RoHS Compliant
1000ft Spool
Specification
Size | Structure | Conductor Diameter mm | Insulation thickness mm | Wrap size mm | Sheath thickness mm | Outer diameter mm | Estimated weight kg/km | Max. DC resistace in 20 degree |
20.75 | 1/0.97 | 0.97 | 0.6 | 100.20 | 1.2 | 7.3 | 62.2 | 24.5 |
21.0 | 1/1.13 | 1.13 | 0.6 | 100.20 | 1.2 | 7.7 | 70.4 | 18.1 |
21.5 | 1/1.38 | 1.38 | 0.7 | 100.20 | 1.2 | 8.6 | 90.2 | 12.1 |
22.5 | 1/1.78 | 1.78 | 0.8 | 150.20 | 1.2 | 9.8 | 123.8 | 7.41 |
24 | 1/2.25 | 2.25 | 0.8 | 150.20 | 1.2 | 10.7 | 162.2 | 4.61 |
26 | 1/2.76 | 2.76 | 0.8 | 200.20 | 1.2 | 11.7 | 211.5 | 3.08 |
30.75 | 1/0.97 | 0.97 | 0.6 | 100.20 | 1.2 | 7.7 | 74.7 | 24.5 |
31.0 | 1/1.13 | 1.13 | 0.6 | 100.20 | 1.2 | 8 | 85.7 | 18.1 |
31.5 | 1/1.38 | 1.38 | 0.7 | 100.20 | 1.2 | 9 | 112.2 | 12.1 |
32.5 | 1/1.78 | 1.78 | 0.8 | 150.20 | 1.2 | 10.3 | 157.5 | 7.41 |
34 | 1/2.25 | 2.25 | 0.8 | 150.20 | 1.2 | 11.3 | 211.2 | 4.61 |
36 | 1/2.76 | 2.76 | 0.8 | 200.20 | 1.2 | 12.4 | 280.4 | 3.08 |
